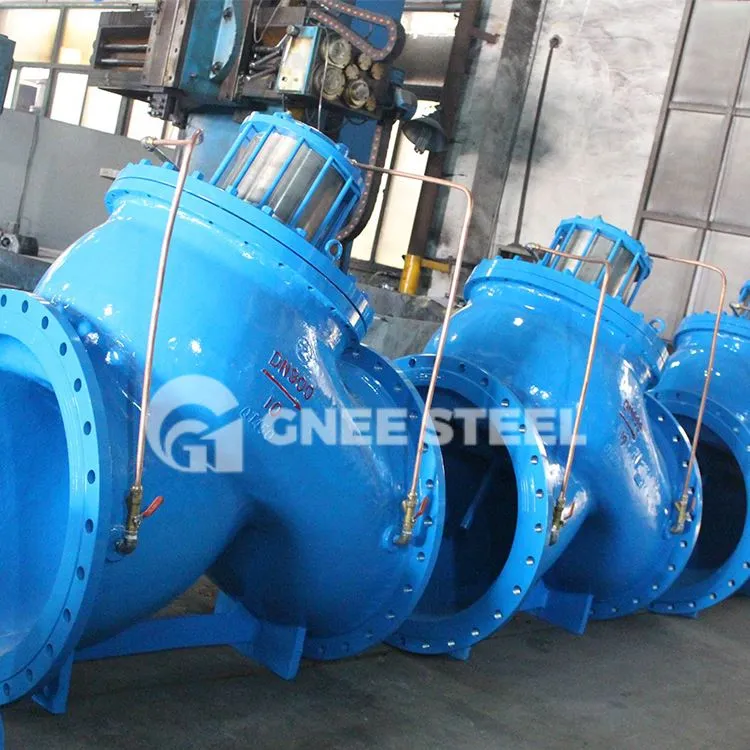

Piston tipidagi nazorat valfi tavsifi
Piston nazorat valfi qopqog'i disk shaklida bo'lib, aylanish harakati uchun valf o'rindig'i kanali o'qi atrofida aylanadi, chunki valf kanali kapalak nazorat klapanining ko'tarilishidan ko'ra soddalashtirilgan, oqimga qarshilik kichik, past oqim tezligi va oqim uchun mos keladi. katta diametrli holatlarda kamdan-kam o'zgarishlar, lekin pulsatsiyalanuvchi oqim uchun ishlatilmasligi kerak va uning muhrlanish ko'rsatkichlari ko'tarish turi kabi yaxshi emas.
| DIZAYN VA ISHLAB CHIQARISH STANDARTLARI | |
|---|---|
| Asosiy dizayn | API 6D |
| Devor qalinligi | API 6D |
| Yuzma-yuz o'lchovlar | Aytilganidek |
| Flanj so'nggi o'lchamlari | ANSI% 2fASME 16.5 |
| Payvand choki uchining o'lchamlari | ANSI% 2fASME B16.25 |
| Tekshirish va sinov | API 6D |
Piston uslubidagi nazorat valfi o'lchamlari jadvali
Piston nazorat klapanlari - API 6D
Oʻlchamlari: 2" - 24"
Sinf: 150
| Oʻlchami | IN | 2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MM | 50 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | |
| A - RF | ICHKARIDA | 8.0 | 9.5 | 11.5 | 16 | 19.5 | 24.5 | 27.5 | 31 | 36 | 38.5 | 38.5 | 51 |
| MM | 203 | 241 | 292 | 406 | 495 | 622 | 699 | 787 | 914 | 978 | 978 | 1295 | |
| H1 | ICHKARIDA | 3.25 | 4.875 | 5 | 6.75 | 9.25 | 11.75 | 13.25 | 14.875 | 17 | / | / | / |
| MM | 83 | 124 | 127 | 171 | 235 | 298 | 337 | 378 | 432 | / | / | / | |
| H2 | ICHKARIDA | 7.0 | 8.35 | 10.23 | 14.56 | 17.83 | 22.48 | 25.51 | 27.25 | 30.125 | / | / | / |
| MM | 178 | 212 | 260 | 370 | 451 | 571 | 648 | 692 | 765 | / | / | / | |
| OG'IRLIK (RF) |
FUNT | 64 | 124 | 201 | 332 | 610 | 1040 | 1328 | 2010 | 2480 | / | / | / |
| KG | 29 | 56 | 91 | 151 | 277 | 472 | 602 | 912 | 1125 | / | / | / |
Piston nazorat klapanlari - API 6D
O'lchamlari: 2" - 16"
Sinf: 300
| Oʻlchami | ICHKARIDA | 2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MM | 50 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | |
| A-RF | ICHKARIDA | 10.25 | 14.75 | 17.625 | 19.375 | 22.5 | 29.625 | 32 | 35.25 | 39.125 | / | / | / |
| MM | 260 | 375 | 448 | 492 | 572 | 752 | 813 | 895 | 994 | / | / | / | |
| A- BW | ICHKARIDA | AUR | AUR | AUR | AUR | AUR | AUR | AUR | AUR | AUR | / | / | / |
| MM | AUR | AUR | AUR | AUR | AUR | AUR | AUR | AUR | AUR | / | / | / | |
| H1 | ICHKARIDA | 3.25 | 4.875 | 5 | 6.75 | 9.25 | 11.75 | 13.25 | 14.875 | 17 | / | / | / |
| MM | 83 | 124 | 127 | 171 | 235 | 298 | 337 | 378 | 432 | / | / | / | |
| H2 | ICHKARIDA | 8.5 | 10.25 | 12.5 | 17.5 | 20.125 | 23.75 | 24.375 | 27.25 | 30.125 | / | / | / |
| MM | 216 | 260 | 318 | 445 | 511 | 603 | 619 | 692 | 765 | / | / | / | |
| OG'IRLIK (RF) |
FUNT | 80 | 155 | 250 | 415 | 750 | 1300 | 1660 | 2500 | 3100 | / | / | / |
| KG | 36 | 70 | 114 | 187 | 341 | 591 | 755 | 1136 | 1409 | / | / | / | |
| AUR=soʻrov boʻyicha mavjud | |||||||||||||
Piston nazorat klapanlari - API 6D
Oʻlchamlari: 2" - 24"
Sinf: 600
| Oʻlchami | NPS | 2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | 50 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | |
| A - RF | ICHKARIDA | 11 | 14.75 | 18.5 | 20.75 | 24 | 30.88 | 33.625 | 37 | 41.25 | 46 | 55.5 | 60 |
| MM | 279 | 375 | 470 | 527 | 610 | 784 | 854 | 940 | 1048 | 1168 | 1410 | 1524 | |
| A - RTJ | IN | 11.375 | 14.875 | 18.625 | 20.875 | 24.125 | 31 | 33.75 | 37.125 | 41.375 | 46.125 | 55.75 | 60.125 |
| MM | 283 | 378 | 461 | 530 | 613 | 787 | 857 | 943 | 1051 | 1172 | 1413 | 1527 | |
| A - BW | ICHKARIDA | AUR | AUR | AUR | AUR | AUR | AUR | AUR | AUR | AUR | AUR | AUR | AUR |
| MM | AUR | AUR | AUR | AUR | AUR | AUR | AUR | AUR | AUR | AUR | AUR | AUR | |
| H1 | ICHKARIDA | 3.25 | 5.25 | 5.375 | 7 | 9.25 | 11.75 | 13.125 | 14.875 | 17 | 19.25 | 20.875 | 22.125 |
| MM | 83 | 133 | 137 | 178 | 235 | 298 | 333 | 378 | 432 | 489 | 530 | 561 | |
| H2 | ICHKARIDA | 8.5 | 10.25 | 12.125 | 18 | 20.25 | 24.25 | 25.125 | 28.125 | 31.25 | 32.875 | 35.25 | 38.78 |
| MM | 216 | 260 | 308 | 457 | 514 | 616 | 638 | 714 | 794 | 835 | 895 | 985 | |
| WGT (RF) |
FUNT | 71 | 136 | 215 | 485 | 782 | 1291 | 1880 | 2391 | 3788 | / | 5871 | 8507 |
| KG | 32 | 62 | 98 | 220 | 355 | 586 | 853 | 1084 | 1718 | / | 2663 | 3858 | |
| AUR=soʻrov boʻyicha mavjud | |||||||||||||
Piston nazorat klapanlari - API 6D
Oʻlchamlari: 2" - 12"
Sinf: 900
| Oʻlchami | NPS | 2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | 50 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | |
| A - RF | IN | / | 14.875 | 19.375 | 21.875 | 24.875 | 31.375 | 33.875 | / | / | / | / | / |
| MM | / | 378 | 492 | 556 | 632 | 797 | 860 | / | / | / | / | / | |
| A - RTJ | ICHKARIDA | / | 15 | 19.5 | 22 | 25 | 31.5 | 33.125 | / | / | / | / | / |
| MM | / | 381 | 495 | 559 | 635 | 800 | 857 | / | / | / | / | / | |
| A - BW | ICHKARIDA | / | AUR | AUR | AUR | AUR | AUR | AUR | / | / | / | / | / |
| MM | / | AUR | AUR | AUR | AUR | AUR | AUR | / | / | / | / | / | |
| H1 | ICHKARIDA | / | 5.25 | 5.375 | 7 | 9.25 | 11.75 | 13.125 | / | / | / | / | / |
| MM | / | 133 | 137 | 178 | 235 | 298 | 333 | / | / | / | / | / | |
| H2 | ICHKARIDA | / | 10.25 | 12.125 | 18 | 20.25 | 24.25 | 25.125 | / | / | / | / | / |
| MM | / | 260 | 308 | 457 | 514 | 616 | 638 | / | / | / | / | / | |
| WGT (RF) |
FUNT | / | 175 | 290 | 550 | 810 | 1650 | 2450 | / | / | / | / | / |
| KG | / | 72 | 129 | 268 | 430 | 751 | 1044 | / | / | / | / | / | |
| AUR=soʻrov boʻyicha mavjud | |||||||||||||
Piston nazorat klapanlari - API 6D
Oʻlchamlari: 2" - 12"
Sinf: 1500
| SIZE | ICHKARIDA | 2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MM | 50 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | |
| A - RF | ICHKARIDA | 13.625 | 17.25 | 20.25 | 24 | 32.375 | 34.375 | 41 | / | / | / | / | / |
| MM | 346 | 438 | 514 | 610 | 822 | 873 | 1041 | / | / | / | / | / | |
| A - RTJ | ICHKARIDA | 13.75 | 17.325 | 20.375 | 24.25 | 32.75 | 35 | 41.675 | / | / | / | / | / |
| MM | 349 | 440 | 518 | 616 | 832 | 889 | 1059 | / | / | / | / | / | |
| A - BW | ICHKARIDA | AUR | AUR | AUR | AUR | AUR | AUR | AUR | / | / | / | / | / |
| MM | AUR | AUR | AUR | AUR | AUR | AUR | AUR | / | / | / | / | / | |
| H1 | ICHKARIDA | 3.25 | 5.25 | 5.375 | 7 | 9.25 | 11.75 | 13.125 | / | / | / | / | / |
| MM | 83 | 133 | 137 | 178 | 235 | 298 | 333 | / | / | / | / | / | |
| H2 | ICHKARIDA | 8.5 | 10.25 | 12.125 | 18 | 20.25 | 24.25 | 25.125 | / | / | / | / | / |
| MM | 216 | 260 | 308 | 457 | 514 | 616 | 638 | / | / | / | / | / | |
| OG'IRLIK (RF) |
FUNT | 111 | 207 | 362 | 803 | 1320 | 2183 | 2301 | / | / | / | / | / |
| KG | 50 | 94 | 164 | 364 | 599 | 990 | 1044 | / | / | / | / | / | |
| AUR=soʻrov boʻyicha mavjud | |||||||||||||
Piston nazorat klapanlari - API 6D
Oʻlchamlari: 2" - 12"
Sinf: 2500
| Oʻlchami | NPS | 2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | 50 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | |
| A - RF | ICHKARIDA | 14.875 | 20.25 | 23.125 | 32 | 37.375 | / | / | / | / | / | / | / |
| MM | 378 | 512 | 587 | 813 | 949 | / | / | / | / | / | / | / | |
| A - RTJ | ICHKARIDA | 15 | 20.5 | 23.5 | 32.5 | 38 | / | / | / | / | / | / | / |
| MM | 381 | 521 | 597 | 826 | 965 | / | / | / | / | / | / | / | |
| A - BW | ICHKARIDA | AUR | AUR | AUR | AUR | AUR | / | / | / | / | / | / | / |
| MM | AUR | AUR | AUR | AUR | AUR | / | / | / | / | / | / | / | |
| H1 | ICHKARIDA | 3.25 | 5.25 | 5.375 | 7 | 9.25 | / | / | / | / | / | / | / |
| MM | 83 | 133 | 137 | 178 | 235 | / | / | / | / | / | / | / | |
| H2 | ICHKARIDA | 8.5 | 10.25 | 12.125 | 18 | 20.25 | / | / | / | / | / | / | / |
| MM | 216 | 260 | 308 | 457 | 514 | / | / | / | / | / | / | / | |
| OG'IRLIK (RF) |
FUNT | 151 | 320 | 513 | 1327 | 2068 | / | / | / | / | / | / | / |
| KG | 68 | 145 | 233 | 602 | 938 | / | / | / | / | / | / | / | |
| AUR - so'rov bo'yicha mavjud | |||||||||||||
